RONDO 3
CI Audio Processor

These support guides will help you handle and care for the RONDO 3 Audio Processor.

Changing the Magnet

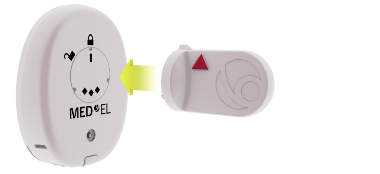

RONDO 3 - Place Magnet Exchange Tool over Magnet
1

Place the magnet exchange tool over the magnet, with the arrow on the tool pointing to the locked symbol.

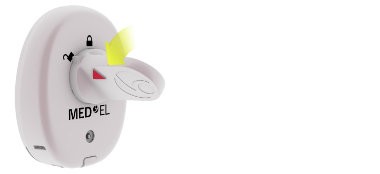

RONDO 3 - Remove Magnet
2

Turn the tool to point to the unlocked symbol. Lift the magnet out of RONDO 3.

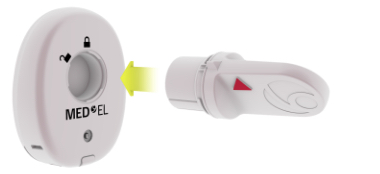

RONDO 3 - Place new Magnet
3

Pick up the new magnet with the tool, making sure the arrow on the tool is over the white bar on the magnet.

4

Place the magnet into the processor, with the arrow pointing to the unlocked symbol.

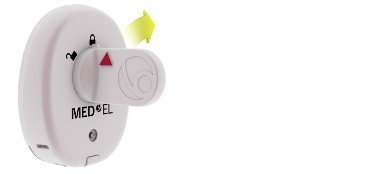

RONDO 3 - Lock Magnet
5

Turn the tool to point to the locked symbol.

!

MED-EL strongly recommends that you do not change the magnet yourself. Contact your clinician to have the magnet changed or if you experience any skin irritation.

Book-Icon

Refer to your user manual for more information.
