SAMBA 2
Audio Processor

These support guides will help you handle and care for the SAMBA 2 Audio Processor.

Changing the Battery

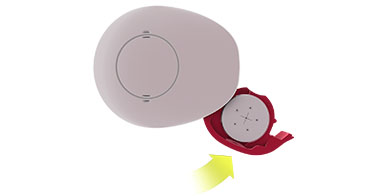

SAMBA 2 - open battery compartment
1

Pull on the raised lip to swing the battery compartment open sideways.

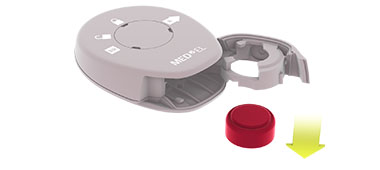

SAMBA 2 - remove battery
2

Turn the audio processor upside down to let the old battery fall out.

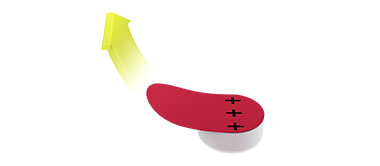

SAMBA 2 - remove battery protecting film
3

Remove the protective film from the new battery.

!

It is recommended to remove the protective film one to two minutes before battery insertion. This time is needed for the zinc-air battery to charge up completely.

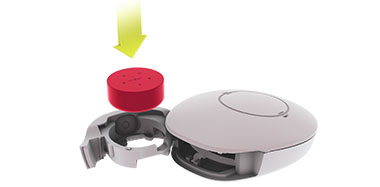

SAMBA 2 - place new battery in battery compartment
4

Place the new battery in the compartment, with the positive (+) pole facing upwards.

SAMBA 2 - close battery compartment
5

Close the battery compartment.

Book-Icon

Refer to your user manual for more information.
