SONNET 3
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET 3 & SONNET 3 EAS Audio Processor.

Assembling SONNET 3 With Disposable Batteries

1

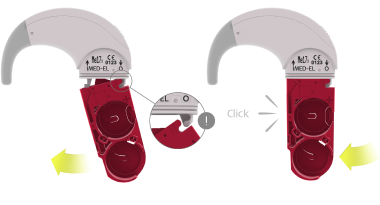

Attach the battery pack frame to the control unit.

!

Note the mechanism that secures the control unit to the frame.

To remove, press the tip of the release lever.

2

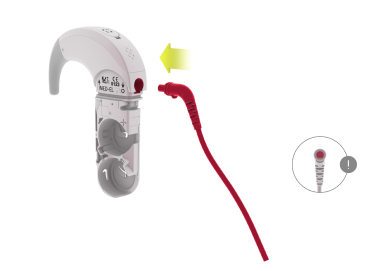

Plug the coil cable into the control unit.

!

Note the correct orientation of the coil cable socket.

3

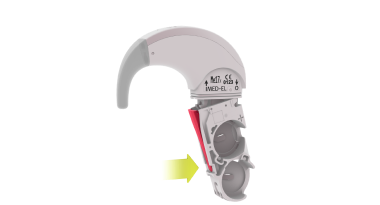

Insert the batteries with the positive (+) poles facing out.

4

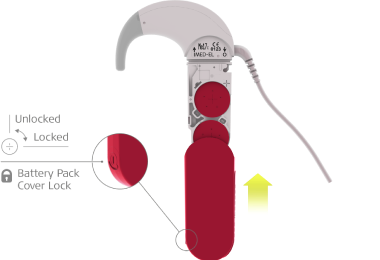

Make sure the battery pack cover lock is in the unlocked position. Slide the battery pack cover over the battery pack frame. SONNET 3 is now switched on.

!

Be careful not to use too much force when turning the lock.

Book-Icon

Refer to your user manual for more information.
