SONNET
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET & SONNET EAS Audio Processor.

Mini Battery Pack

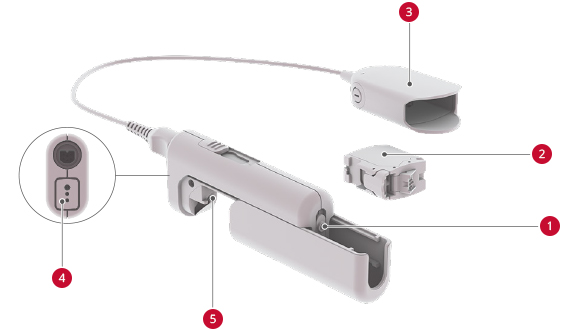

Overview

The Mini Battery Pack offers up to 37 hours of use with a single AAA battery and is worn off the ear. It can also be used with a rechargeable DaCapo PowerPack.

Sonnet-MiniBatteryPack-Overview
1

ON/OFF Switch and Battery Compartment Lock

2

SONNET Mini Battery Pack Adapter

3

SONNET Mini Battery Pack Cable

4

3-Pin FM Port

5

Battery Compartment for DaCapo PowerPack or AAA Battery

Basic Assembly

Follow these instructions to start using the Mini Battery Pack.

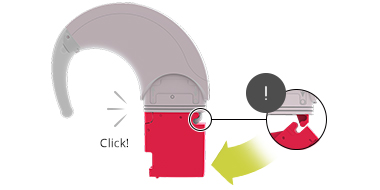

Sonnet-MiniBatteryPack-Unlock
1

Attach Mini Battery Pack Adapter to control unit.

!

Note the mechanixs that secures the control unit to the frame.

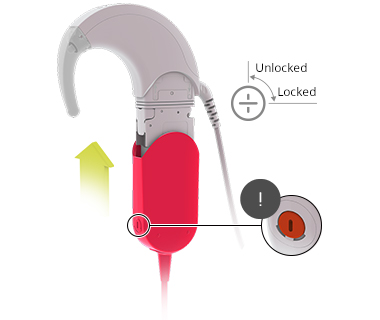

Sonnet-MiniBatteryPack-Cover-Close
2

Slide cover of Mini Battery Pack Cable over adapter.

!

Be careful not to use too much force when you turn the battery pack cover lock.

MiniBatteryPack-ConnectorCable
3

Connect the connector cable to the Mini Battery Pack. Your SONNET is now ready to use.

Book-Icon

Refer to your user manual for more information.
