FineTuner Echo

These support guides will help you handle and care for your FineTuner Echo Remote Control.

Overview

You can use the FineTuner Echo to adjust your MED-EL audio processor.

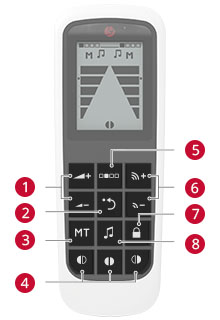

FineTuner Echo
1

Volume

2

Default

3

Input Selection

4

Processor Selection

5

Program Selection

6

Sensitivity

7

Keypad Lock

8

Audio Streaming Key (to activate AudioLink)

FineTuner Echo Functions

All FineTuner Echo functions can be performed with either the left processor, right processor, or both processors. To choose which processor or processors you wish to perform the function with, press the corresponding processor selection key.

1

To turn up the volume with the FineTuner Echo, press the Volume + key.

2

To turn the volume down, press the Volume - Key.

3

To increase the sensitivity of your audio processor's microphones, press the upper Sensitivity key. This will increase the range of the microphones, but may also increase levels of background noise.

4

To decrease the sensitivity of your audio processor's microphones, press the lower Sensitivity key.

5

The Default key sets volume and sensitivity back to predefined values set by your audiologist. Pressing default will not change your program.

6

To select a program, press the Program Selection key.

7

To switch between hearing sound from your microphones, telecoil, or microphones and telecoil, press the MT button.

8

To activate the connection with AudioLink, press the Audio Streaming Key.

Book-Icon

Refer to your user manual for more information.
