SONNET
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET & SONNET EAS Audio Processor.

BabyWear

Overview

BabyWear is an alternative way of wearing SONNET. It is designed for babies and small infants, who may not yet be ready to wear an audio processor on their ears. With BabyWear, the entire audio processor is attached to clothing, and is connected to the coil by an extended cable.


Basic Assembly

Sonnet-BabyWear-SiliconeRing
1

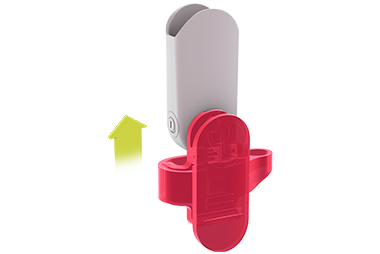

Slide the silicone ring of the attachment clip over the battery pack cover with the small cable ring to the back, which is the side with air inlets. .

Sonnet-BabyWear-SlidePlug
2

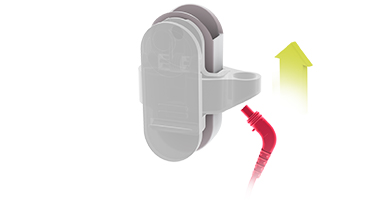

Slide plug of 28 cm coil cable thr class="hidden-lg"ough ring in attachment clip.

Sonnet-BabyWear-Plug
3

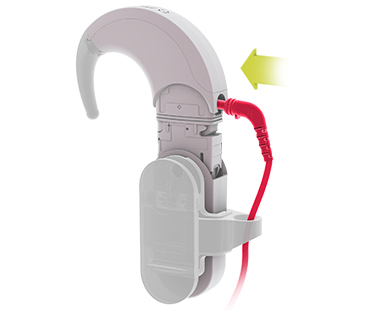

Plug 28 cm coil cable into SONNET.

!

All steps must be followed to ensure BabyWear is tamperproof.

Sonnet-BabyWear-BatteryPackCover
4

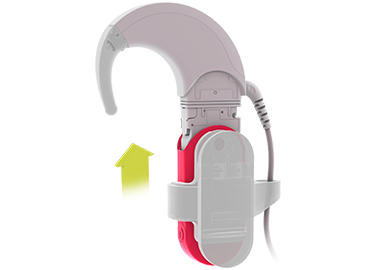

Slide battery pack cover over battery pack.

!

Be careful not to use too much force when you turn the battery pack cover lock.

Sonnet-BabyWear-Earhook-Replace
5

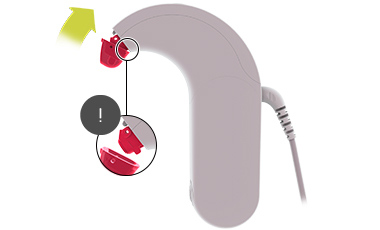

Replace earhook with earhook cover and secure with the earhook pin.

Book-Icon

Refer to your user manual for more information.
