SONNET
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET & SONNET EAS Audio Processor.

ActiveWear

Overview

ActiveWear is the ideal accessory for energetic kids, or for adults during sport. With ActiveWear, SONNET's battery pack is attached to clothing leaving only the lightweight control unit on the ear. This makes SONNET both more comfortable to wear, and also means it is secured in case of unexpected knocks or falls.

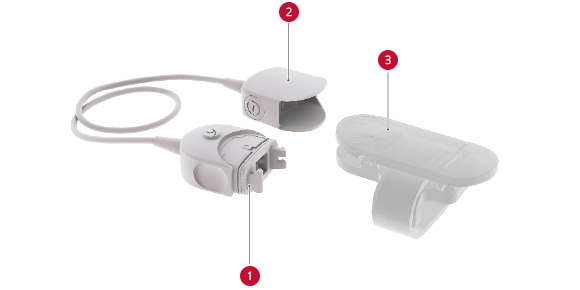

Sonnet-ActiveWear-Overview
1

SONNET ActiveWear Battery Pack Connector

2

ActiveWear Connector & Connector Cover

3

Attachment Clip

Basic Assembly

Sonnet-ActiveWear-Attach
1

Attach ActiveWear connector to control unit. To remove, press release lever and tilt off.

!

Note the mechanism that secures the control unit to the frame

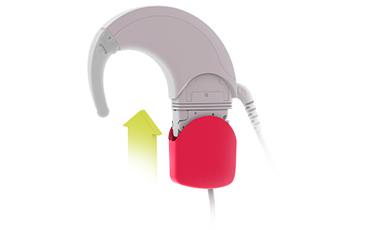

Sonnet-ActiveWear-Close
2

adapter, with the cover lock facing towards the coil cable.

!

Be careful not to use too much force when you turn the connector cover lock.

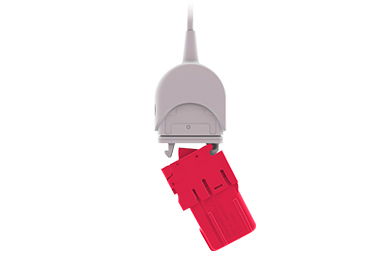

Sonnet-ActiveWear-BatteryPack-Attach
3

Attach your SONNET Battery Pack to the ActiveWear Battery Pack Connector.

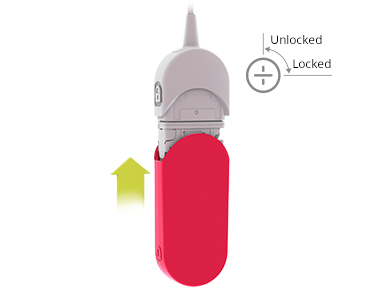

Sonnet-ActiveWear-BatteryPack-Close
4

Slide the battery pack cover over the battery pack.

!

Be careful not to use too much force when you turn the battery pack cover lock.

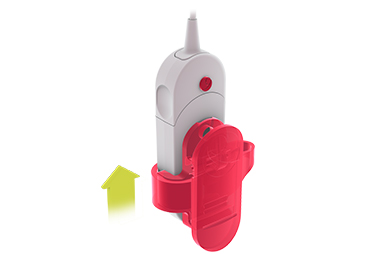

Sonnet-ActiveWear-SiliconeRing
5

Slide the silicone ring of the attachment clip over the battery pack cover. Make sure to align the hole in the clip with the button on the battery pack connector.

6

The hole in the attachment clip should snap onto the button on the battery pack connector.

Book-Icon

Refer to your user manual for more information.
