RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

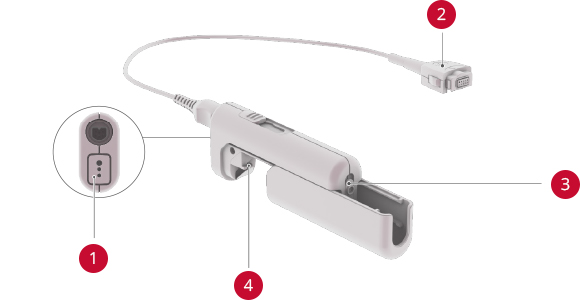

Using the Mini Battery Pack (MBP)

RONDO2_Mini_battery_pack
1

3-Pin Port

2

RONDO 2 Connector

3

On/Off Switch and Battery Compartment Lock

4

Battery Compartment for DaCapo PowerPack or AAA Battery

1

Slide off the battery compartment cover and insert a AAA battery or DaCapo PowerPack into the MBP.

R2_Quick_Guide_Opening_MBP_Port_fr001_a
2

Pull gently on the rubber socket cover at the bottom of the processor to open the MBP port.

R2_Quick_Guide_Opening_MBP_Port_fr001_b
3

Plug in the MBP cable by simultaneously pressing the release levers.

For more connectivity options, a wireless receiver, such as the Roger™ X from Phonak, can be plugged into the MBP’s 3-pin port. This makes it easy to connect to phones and other devices using wireless microphones like the Roger Pen™. A direct audio input cable can also be used with the MBP.

*Roger™ is a trademark of Phonak

Book-Icon

Refer to your user manual for more information.
