RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

Using Attachment Clips

Fixation

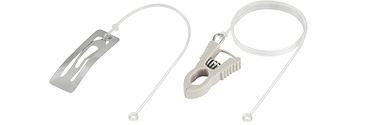

There are two types of clip: the Hair Attachment Clip and Clothes Attachment Clip. Both are attached to RONDO 2 in the same way

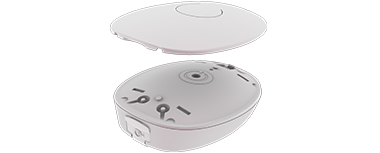

R2_Quick_Guide_Cover_Open_fr001
1

Remove the cover from the audio processor.

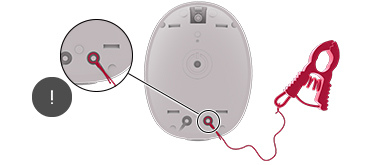

R2_Quick_Guide_No_Cover_Attachement-Clip_fr001
2

Push the circular end of the leash into the matching groove at the bottom of the processor

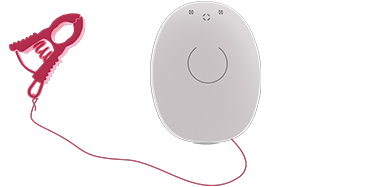

R2_Quick_Guide_Cover_Attachment-Clip_fr001
3

Replace the cover, securing the cable in place.

4

Clip to hair or clothes as appropriate.

Book-Icon

Refer to your user manual for more information.
