RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

Charging RONDO 2

R2_Quick_Guide_Charging_Pad_USB_Cable
1

Plug the USB Cable into the charging pad.

2

Plug the other end into the wall plug adapter, or the USB port of your computer, TV, tablet etc.

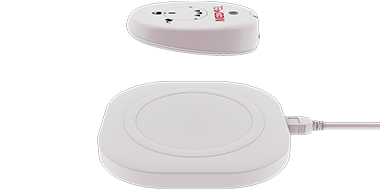

R2_Quick_Guide_Placing_On_Charging_Pad
3

Switch off RONDO 2 and place it in the exact centre of the charging pad, with the MED-EL logo facing upwards.

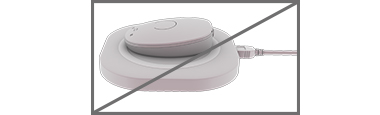

Wrong positioning
!

Make sure RONDO 2 is placed correctly onto the charging pad. The MED-EL logo must be facing upwards.

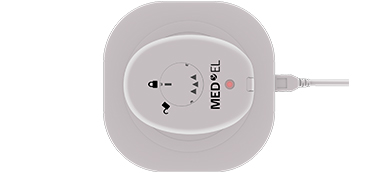

R2_Quick_Guide_On_Charging_Pad_fr001
4

The orange indicator light shows that RONDO 2 is charging. When the light goes off, RONDO 2 is charged. This should take around 4 hours.



Charging pad not manufactured by MED-EL and designs may vary.

Book-Icon

Refer to your user manual for more information.
