OPUS 2
Audio Processor
These support guides will help you handle and care for your OPUS 2 Audio Processor.
Basic Assembly
Never use excessive force when you assemble your OPUS 2. If you encounter any resistance during any of the assembly steps, you probably need to adjust the position of one or more parts.
1

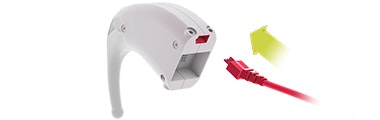

Plug the coil cable into the control unit.
!
Ensure the arrow is on top.
2
Attach the battery pack frame to the control unit.
3
Lock the battery pack frame using the connecting piece.
4
Connect the coil cable to the D Coil.
!
Ensure the center ridge is on top.
5
Insert the batteries with positive (+) poles facing out.
6
Slide on the battery pack cover. Close the battery pack cover lock.
Refer to your user manual for more information.
