OPUS 2
Audio Processor

These support guides will help you handle and care for your OPUS 2 Audio Processor.

Children’s Battery Pack

Overview

The Children's Battery Pack allows younger children to wear the battery pack on their clothes, making OPUS 2 lighter on their ear. The Children's Battery Pack provides up to 90 hours of power using 3 size 675 zinc-air batteries.

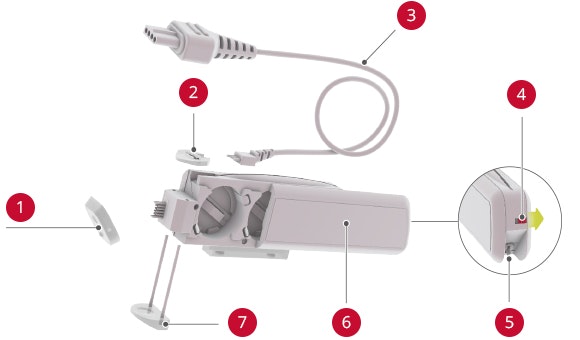

OPUS2_children’sBatteryPackOverview
1

Battery Pack Cable

2

Safety Lock (optional)

3

Connecting Piece

4

Battery Compartment Lock

5

ON/OFF Switch

6

Battery Compartment

Basic Assembly

Follow these instructions to start using the Children's Battery Pack.

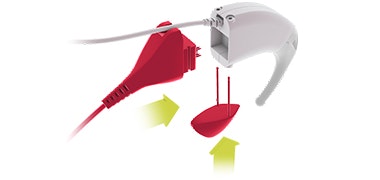

OPUS2_attachMiniBatteryPack
1

Attach the connector to the control unit and secure both components using the connecting pin and safety lock.


2

Secure the battery pack to clothing using the fixation accessories provided.

Book-Icon

Refer to your user manual for more information.
