SONNET
CI and EAS Audio Processor

These support guides will help you handle and care for the SONNET & SONNET EAS Audio Processor.

Basic Assembly

Never use excessive force when you assemble your SONNET. If you encounter any resistance during any of the assembly steps, you probably need to adjust the position of one or more parts.

Sonnet-DLCoil-Connect
1

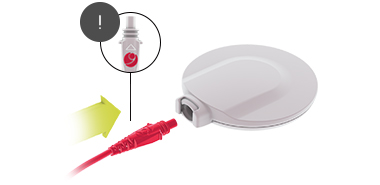

Connect the coil cable to the DL-Coil by inserting the coil cable plug into the DL-Coil socket.

!

Note the orientation of the plug. The logo and arrow should face up.

DL-Coil_Open_fr051_3
2

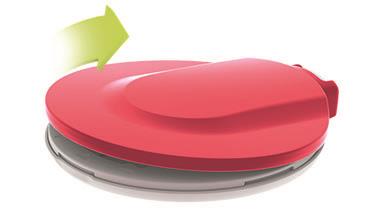

The DL-Coil cover is also available in a locking version for additional security. To connect the coil cable to the locking DL-Coil Cover, insert your fingernail or plastic screwdriver into the front of the cover, and slide tip around the base to gently open.

!

You must insert the coil cable into the coil base before closing if using a locking DL-Coil cover. Press the cover and base together to close. Ensure cover is completely closed.

Sonnet-Cover-Attach
3

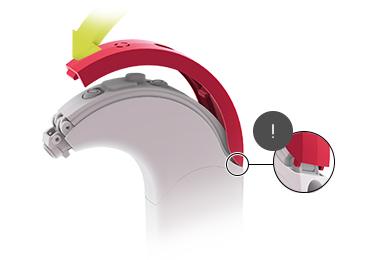

Attach the microphone cover. Then carefully snap the microphone cover onto the control unit.

!

Insert the pins of the microphone cover into the recesses in the control unit.

Sonnet-Earhook-Attach
4

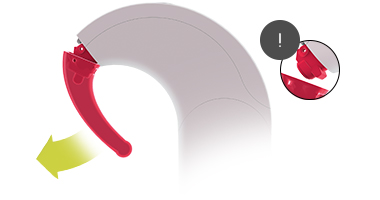

Attach the earhook to the control unit.

!

Note the mechanism that secures the earhook to the control unit.

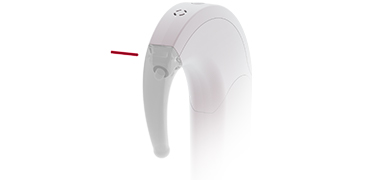

Sonnet-EarhookPin-Insert
5

To lock the earhook, insert the earhook pin into the hole. This step is recommended for children and optional for adults.

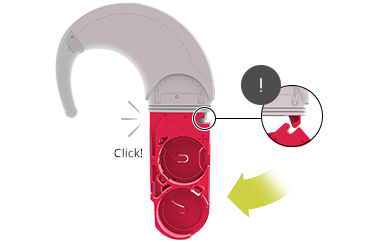

Sonnet-BatteryPack-Attach
6

Attach the battery pack frame to the control unit.

!

Note the mechanism that secures the control unit to the frame.

Sonnet-Cable-PlugIn
7

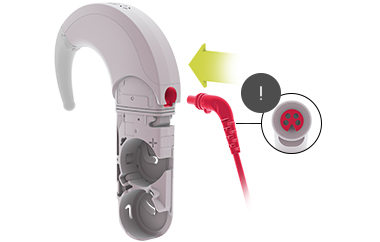

Plug the coil cable into the control unit.

!

Note the correct orientation of the coil cable socket.

Sonnet-Battery-Insert
8

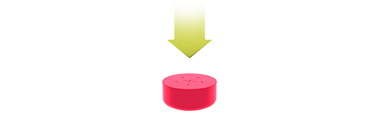

Insert the batteries with positive (+) poles facing out. Before you insert the new battery set, make sure the battery contacts are clean and dry. Avoid touching the battery contacts inside the battery pack frame. Finally, remove the foil stickers covering the batteries. Always replace all of the batteries at once rather than mixing used and new batteries.

Sonnet-BatteryPack-Close
9

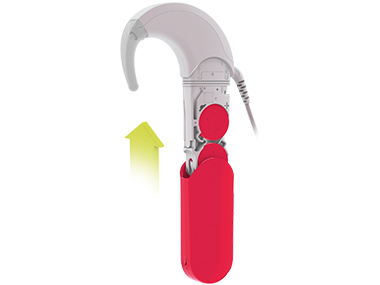

Slide the battery pack cover up fully over the battery pack frame. The battery pack cover lock should be facing to the front.

Sonnet-IndicatorLight-Green
10

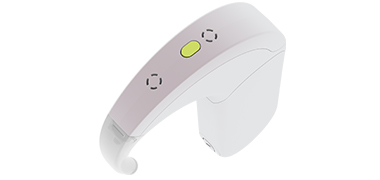

Once the battery cover is in place, blinking LED indicator lights show that your SONNET is working.

;
Book-Icon

Refer to your user manual for more information.
