RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

Switching on RONDO 2

R2_Quick_Guide_Activation_Button_fr001
1

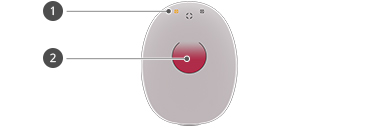

Press the round on/off button 2 on the top of RONDO 2 to switch it on. If the RONDO 2 is already on, the amber indicator light 1 will blink to show it is switched on.

R2_Quick_Guide_Activation_Blue_Light_fr001
2

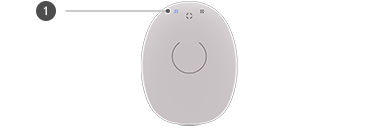

The blue indicator light 1 will blink to show which program is activated. One blink indicates program 1 is selected, two blinks indicate program 2, and so on.

R2_Quick_Guide_Activation_Red_Light_fr001
3

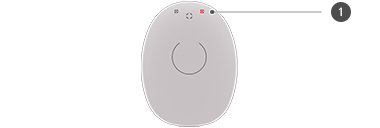

If the link-check function is activated, the red indicator light 1 will blink. The green indicator light will blink once RONDO 2 is correctly positioned on your head.

!

The link-check function is also known as the link monitoring function.

Mobile_MP3_RONDO2
4

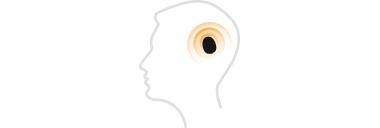

RONDO 2 should be placed over your implant, with the MED-EL logo against your head and the microphone facing upwards.

Book-Icon

Refer to your user manual for more information.
