RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

Changing the Magnet

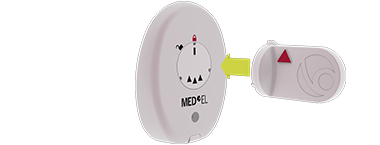

R2_Quick_Guide_Magnet_Removal_Tool_Placement_fr001
1

Place the magnet exchange tool over the magnet, with the arrow on the tool pointing to the locked symbol.

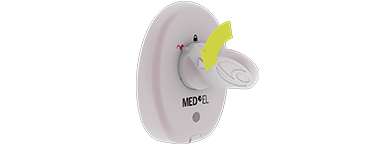

R2_Quick_Guide_Opening_Magnet_Cover_fr001
2

Turn the tool to point to the unlocked symbol. Lift the magnet out of RONDO 2.

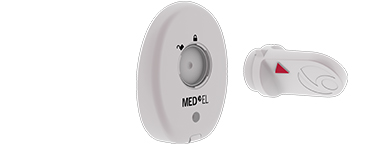

R2_Quick_Guide_Magnet_Removed_fr001
3

Pick up the new magnet with the tool, making sure the triangular arrow on the tool is over the white bar on the magnet.

4

Place the magnet into the processor, with the arrow pointing to the unlocked symbol.

R2_Quick_Guide_Magnet_Cover_Closing_fr001
5

Turn the tool to point to the locked symbol.

!

MED-EL strongly recommends that you don’t change the magnet yourself. Contact your clinician to have the magnet changed or if you experience any skin irritation.

Book-Icon

Refer to your user manual for more information.
