RONDO 2
CI Audio Processor

These support guides will help you handle and care for the RONDO 2 Audio Processor.

Attaching WaterWear

1

Check that WaterWear and your hands are clean and dry.

2

Hold RONDO 2 with the MED-EL logo facing upwards.

waterwear 1
3

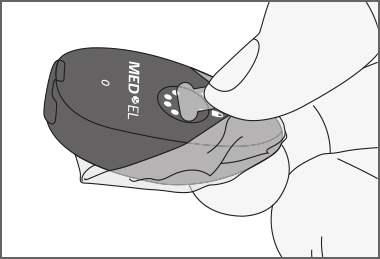

Insert it microphone first into the cover, so that the flap at the top of the cover lies smoothly over the flat side.

waterwear 2
4

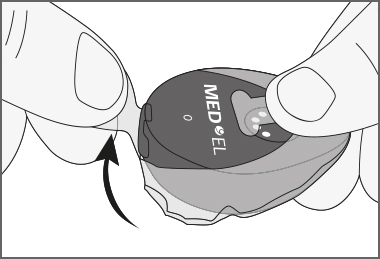

Take the flap at the bottom and pull the rest of the cover over the processor.

5

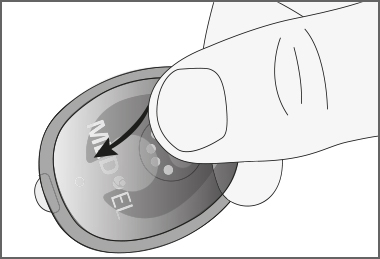

Make sure the cover fits snugly around the processor, without any wrinkles or air bubbles.

waterwear 3
6

Place the round adhesive strip over the flat side of the processor, starting at the bottom. There should be no gaps between the strip and the cover.

waterwear 4
7

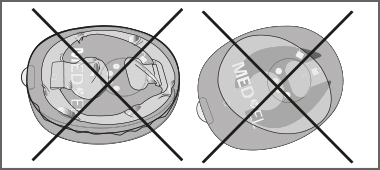

Check that the processor is sealed on all sides by WaterWear, and that there are no wrinkles or air bubbles.

waterwear 5
8

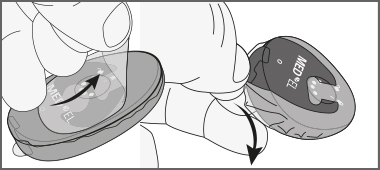

To remove WaterWear, gently peel off the adhesive strip and discard. Use the circular flap to remove the cover from the processor.

9

The adhesive strip can only be used once, but each WaterWear cover can be used up to three times.

Book-Icon

Refer to your user manual for more information.
