Direct Audio Input
For the best sound quality, connect your audio processor to your phone or other device with a Direct Audio Input Cable. This is a great way to listen to music, and it's easy to connect via the Mini Battery Pack.

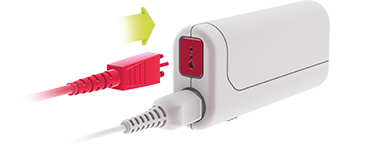

Insert the 3-pin plug of the direct audio input cable into the 3-pin port of the Mini Battery Pack.

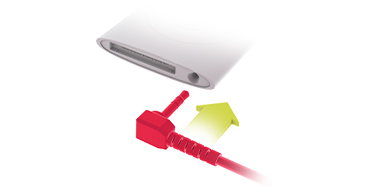

Insert the 3.5 mm plug of the audio adapter cable into the headphone port of your phone, or other audio device.
Direct Audio Input Cables
The mixed source cables provide a balance of audio processor microphone and external audio input. The external cables provide mainly input from the external audio device. Unilateral cables are for connecting one audio processor. Bilateral cables are for connecting two audio processors.
Unilateral Mixed Source
Unilateral External Source
Bilateral Mixed Source
Refer to your user manual for more information.
