OPUS 2
Audio Processor

These support guides will help you handle and care for your OPUS 2 Audio Processor.

BabyBTE/ActiveWear

Overview

BabyBTE/ActiveWear is a wearing option designed for babies and infants, as well as active adults. With BabyBTE/ActiveWear, the enitre processor can be attached to clothing, leaving nothing on your baby's ears.

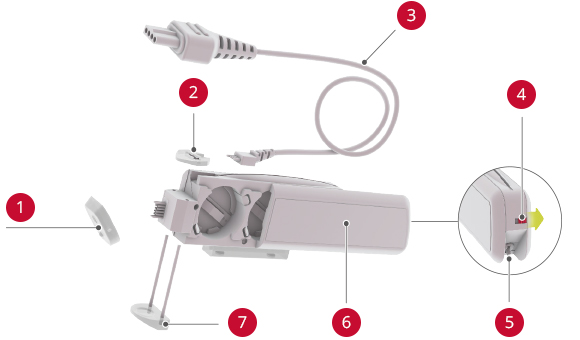

OPUS2_babyBTE/ActiveWearOverview
1

Microphone Cover

2

Safety Lock (optional)

3

Coil Cable

4

Battery Compartment Lock

5

ON/OFF Switch

6

Battery Compartment

7

Connecting Piece

Basic Assembly

Follow these instructions to start using BabyBTE/ActiveWear.

OPUS2_attachMicrophoneCover
1

Carefully snap the microphone cover onto the control unit.

!

Note the mechanism that secures the Battery microphone cover.

<

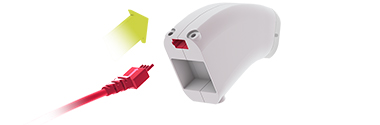

OPUS2_insertCoilCable
2

Plug the coil cable into the control unit.

!

Ensure the arrow is on top.

<

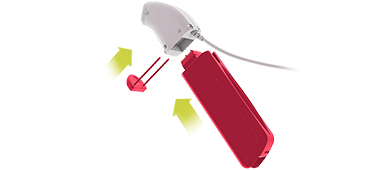

OPUS2_babyBTE/ActiveWearAttachBatteryPack
3

Attach the battery pack frame to the control unit and secure both components using the connecting piece and safety lock.

Book-Icon

Refer to your user manual for more information.
