OPUS 2
Audio Processor

These support guides will help you handle and care for your OPUS 2 Audio Processor.

Changing the Cable

OPUS2_batteryPackOpen
1

Remove the battery pack cover from the battery pack frame.

OPUS2_removeConnectingPiece
2

Remove the connecting piece.

OPUS2_batteryPack
3

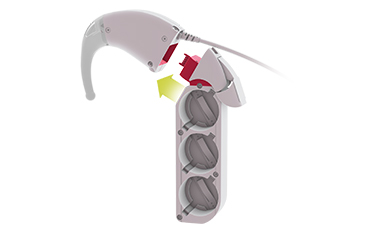

Remove the battery pack frame from the control unit.

OPUS2_removeCoilCable
4

Remove the coil cable from the control unit by grasping the plug and gently pulling it out of the socket.

OPUS2_coilCable
5

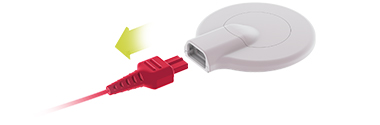

Remove the coil cable from the D Coil.

OPUS2_coilCable
6

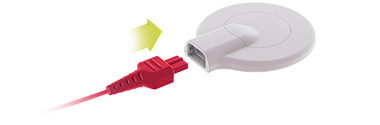

Connect the new coil cable to the D Coil.

OPUS2_insertCoilCable
7

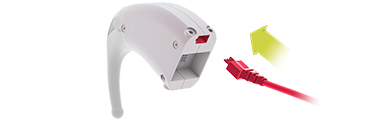

Plug the coil cable into the control unit by inserting it into the control unit socket, with the arrow facing upwards.

OPUS2_attachBatteryPack
8

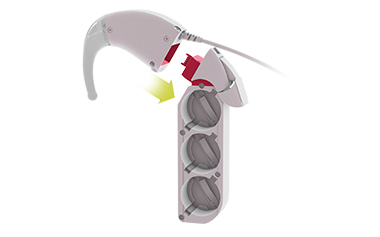

Attach the battery pack frame to the control unit.

OPUS2_connectingPiece
9

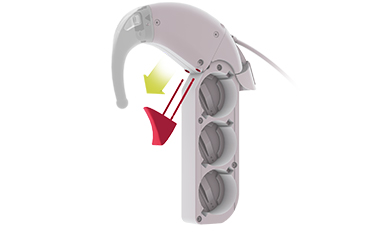

Secure the battery pack frame by inserting the pins of the connecting piece into the two holes at the base of the control unit.

OPUS2_batteryPackCoverOn
10

Switch on OPUS 2 by sliding the battery pack cover onto the battery pack frame and closing the battery pack lock.

Book-Icon

Refer to your user manual for more information.
